| Lieu d'origine: | LA CHINE |
| Nom de marque: | SHIMEI |
| Certification: | MA |
| Numéro de modèle: | MQT-130 |
| Prix: | USD1600 |
|---|---|
| Détails d'emballage: | carton |
| Délai de livraison: | d'ici 1 jours de la signature du contrat |
| Conditions de paiement: | L/C T/T |
| Capacité d'approvisionnement: | 3000 unités |
| Quantité de commande min: | 1 |
| Mettre en évidence: | boulonnage de toit,soutien de toit,perçage d'un tunnel de charbonnage |
||
|---|---|---|---|

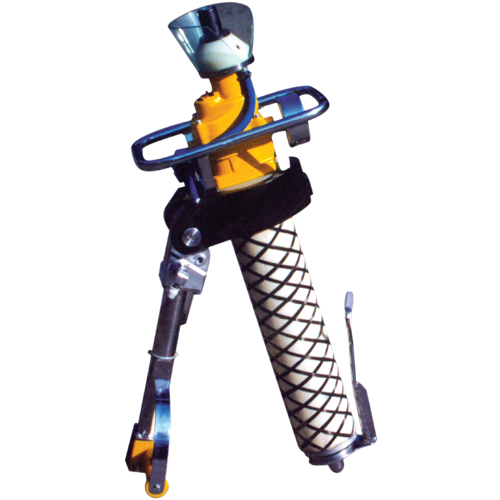

It is mainly used for brilling bolter holes in the roof of underground coal mine. The hardness of the roof can be less than 80Mpa.
It with the features of small size, light weight, large torque, easy operation and maintenance. Hole drilling, stirring of gel and bolting can be achieved by this single machine.
|
Description
|
MQT-90/2.4I
|
MQT-90/2.4II
|
MQT-90/2.4III
|
MQT-110/2.5I
|
MQT-110/2.5II
|
MQT-110/2.5III
|
MQT-120/2.7I
|
MQT-120/2.7II
|
MQT-120/2.7III
|
MQT-130CI
|
MQT-130CII
|
MQT-130CIII
|
|
Working pressure MPa
|
0.4-0.63
|
0.4-0.63
|
0.4-0.63
|
0.4-0.63
|
||||||||
|
Working pressure MPa
|
0.5
|
0.5
|
0.5
|
0.5
|
||||||||
|
Nominal speed rpm
|
240
|
240
|
240
|
240
|
||||||||
|
Nominal torque N.m
|
＞90
|
＞110
|
＞120
|
≥130
|
||||||||
|
Idle speed rpm
|
≥750
|
≥750
|
≥700
|
≥700
|
||||||||
|
Air consumption lpm
|
3000
|
3400
|
3600
|
3700
|
||||||||
|
Max. output power kW
|
2.4
|
2.5
|
2.7
|
3.0
|
||||||||
|
Max. push force kN
|
9.2
|
9.2
|
11.4
|
11.4
|
||||||||
|
Nominal push force kN
|
7.5
|
7.5
|
9.1
|
9.1
|
||||||||
|
Torque at Max. Load N.m
|
180
|
180
|
185
|
190
|
||||||||
|
Stall torque N.m
|
190
|
190
|
195
|
200
|
||||||||
|
Rinsing water pressure (MPa)
|
0.6-1.2
|
|||||||||||
|
Noise level dB (A)
|
＜95
|
|||||||||||
|
Rod sleeve size mm
|
S=19 S=22
|
|||||||||||
|
Min. Height mm
|
1430
|
1280
|
1155
|
1430
|
1280
|
1155
|
1280
|
1340
|
1155
|
1430
|
1280
|
1155
|
|
Max. Height mm
|
3600
|
3000
|
2500
|
3600
|
3000
|
2500
|
3000
|
3000
|
2500
|
3600
|
3000
|
2500
|
|
Weight kg
|
50
|
47
|
45
|
51
|
48
|
46
|
49
|
49
|
47
|
52
|
49
|
47
|
